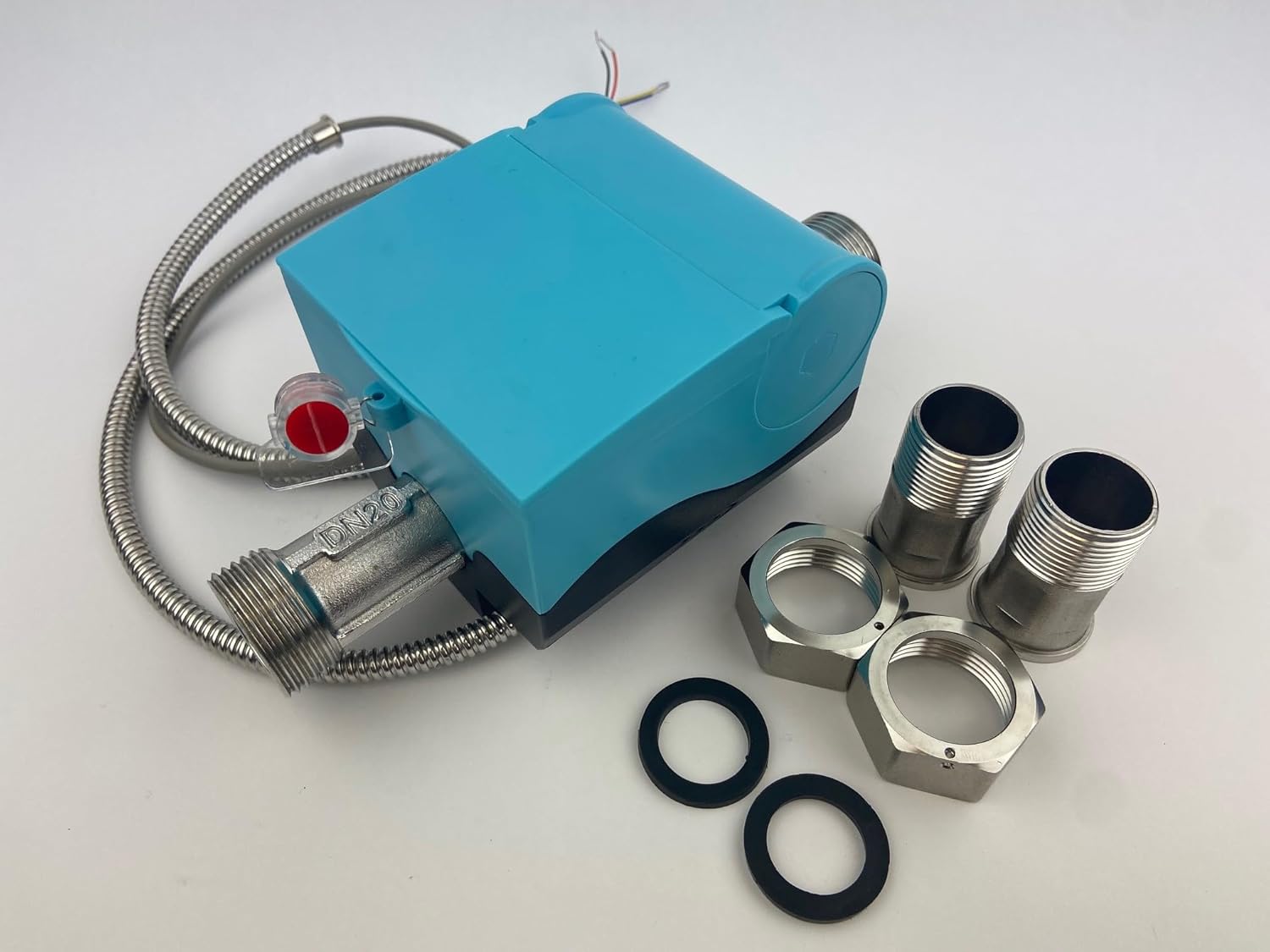

DAE U-75b 3/4" NSF61 Non-Lead Stainless Ultrasonic Flow Meter with RS485 Communication, IP68, NPT Couplings, Gallons, GPM
4.7 (117 items)
Limited Time SaleUS$92.22 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221349923 | Release Date | 2026/05/03 | List Price | US$61.48 | Model Number | 221349923 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- U-75b is equivalent to a 3/4″ non-lead water meter + a AMR130 (Automatic Reading Device with RS485 communication). For Cloud Metering with CC2030 + U-75b, meter reading will always be same as reading of cell phone, PC. NRV (Non-Return Valve) is not required. Can be installed in any position, vertically, horizontally, water flowing downwards or upwards, dial facing upwards, downwards or side-way. Good for outdoor use, pit application.

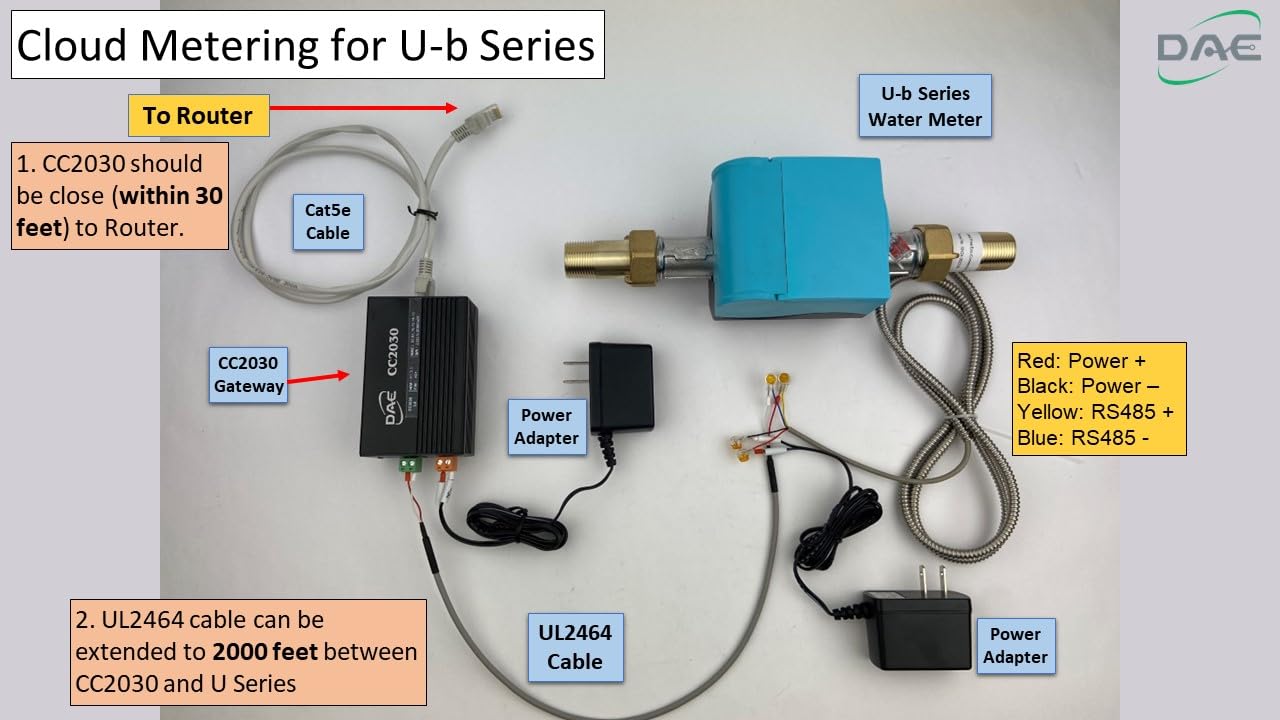

- 1 DAE CC2030 KIT Gateway can read 1 to 20 DAE meters with RS485 communication (like U-75b) remotely with cell phone, PC and generate billing reports (2nd picture). One CC2030 Gateway can also monitor 20 different meters (water, electricity, and gas) simultaneously. No IT guy is required. Just connect wires as per a simple picture (5th picture) & ready to go.
- For existing building, hard to draw cable between water meter and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect the meter and CC2030 wirelessly. (3rd picture)

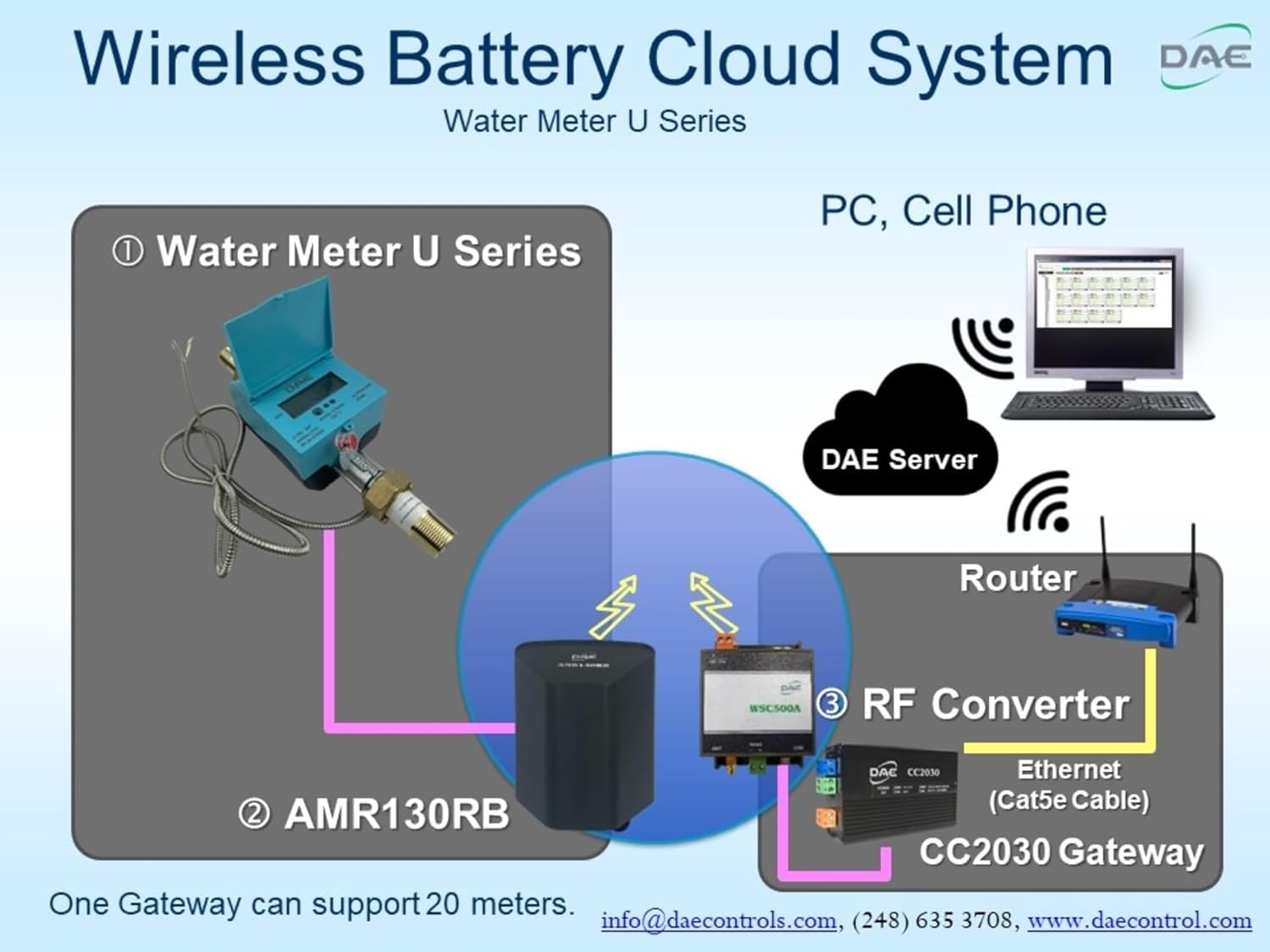

- For remotely monitoring a water meter in an area without power like the one in the farm, please choose CC2030 KIT+AMR130RB+WSC500A to connect Battery-Powered AMR130RB (close to water meter) and CC2030 (close to your router) wirelessly.(7th picture)
- Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard. Conforms to AWWA C715. Safe Maximum Flow Rate: 20 GPM, Recommended Maximum Continuous Flow Rate: 10 GPM, Minimum Test Flow Rate: 0.25 GPM, Normal Test Flow Limits: 1-20 GPM
| Manufacturer | DAE |
|---|---|
| Item model number | U-75b |
| Product Dimensions | 3.55 x 3.75 x 7.6 inches |
| Is Discontinued By Manufacturer | No |
